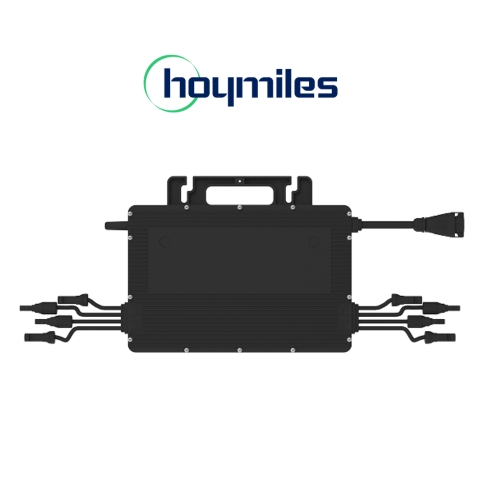

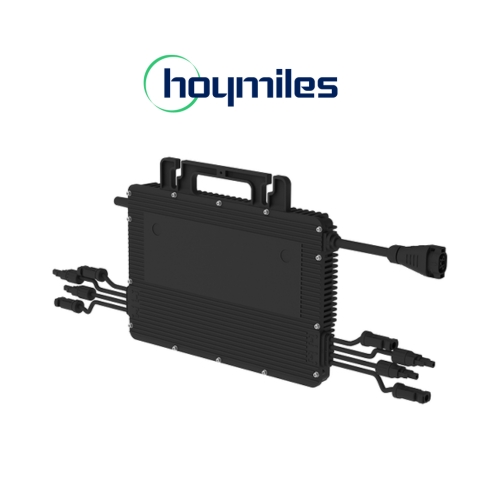

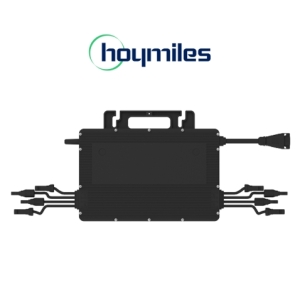

Biến tần Micro 1P HMS-2000D-4T

Mã sản phẩm: HMS-2000D-4T

Hoymiles HMS-2000D-4T – Microinverter 4-in-1 nhỏ gọn nhưng mạnh mẽ, lý tưởng cho các hệ thống điện mặt trời dân dụng và công trình có không gian hạn chế, sản phẩm hỗ trợ kết nối trực tiếp 4 tấm pin công suất lớn chỉ với 1 thiết bị, 2 MPPT độc lập giúp tối ưu thu năng lượng trong mọi điều kiện hướng nắng.

Liên hệ qua Zalo

Liên hệ

Chia sẻ:

When installation space is limited and you need to reduce the number of devices while maintaining performance, the HMS-2000D-4T is the answer. Designed with the "less is more" philosophy, this product offers the ability to connect up to four independent solar panels with just one microinverter – saving on investment costs while optimizing monitoring and operation.

1. 4-IN-1 CONFIGURATION – MAXIMUM POWER, MINIMUM MATERIALS

Supports connecting 4 solar panels with a power output from 470W to 670W+.
Two independent MPPTs, each controlling two strings of solar panels – helping to reduce losses due to shading or misalignment.
Output power up to 2000 VA – sufficient to meet the needs of large households or small construction projects.

2. SMART MONITORING – CONTROL EACH SOLAR PANEL INDIVIDUALLY

Integrating the S-Miles Cloud remote management platform.
Monitor the performance of each solar panel and detect faults instantly.
Sub-1G communication technology – more stable than Wi-Fi, less interference, ideal for factory areas or regions with many obstacles.

3. DESIGNED FOR DURABILITY AND SAFETY

Complete isolation via HF transformer – protecting users and equipment.
IP67 water and dust resistance rating – built for durable outdoor use.
Cools using natural convection, no fan needed, and operates silently.
Rapid shutdown – meets international safety standards.

4. TECHNICAL SPECIFICATIONS OF HOYMILES HMS-2000D-4T

Specifications	HMS-2000D-4T
DC input parameters
MPPT number	2
Number of solar panel inputs	4 (2/MPPT alley)
Maximum input current	4 × 16 A
Maximum input voltage	65 V
MPPT range	16 – 60 V
Starting voltage	22V
AC output specifications
Rated output power	2000 VA
Rated output current	8.33 A
AC output	230 V ± 25 V / 50 Hz
Power factor adjustment	0.8 – 1.0
THD (Harmonic Distortion)	< 3%
Performance and control
CEC performance	96.5%
MPPT performance	99.8%
Media	Sub-1G RF
Isolation	Galvanic with HF transformer
Monitor	S-Miles Cloud
Physical and environmental parameters
Size	310 × 185 × 46.6 mm
Weight	4.5 kg
Protection standard	IP67
Operating temperature	-40 to +65°C

5. WHY CHOOSE HOYMILES HMS-2000D-4T AT BKE SOLAR?

At BKE Solar, the equipment is only part of the equation. We deliver the system.

- We provide a complete, integrated microinverter solution: inverter, gateway, software, and accessories.

- Consulting on power capacity, solar panel layout, and wiring optimization for each model.

- On-site technical support, remote monitoring configuration, and manufacturer's warranty.

- Our team of engineers is trained directly by Hoymiles – they have expertise in hybrid, off-grid, and weak grid design.

The HMS-2000D-4T is more than just an inverter. It's the solution for those who want a streamlined, precise, and intelligent system down to the smallest detail.

Contact BKE Solar today to receive professional design and implementation advice for your microinverter system at your home or building.

File	Tải xuống
datasheethmt-160018002000emeaapacenv202308-1-1340.pdf
